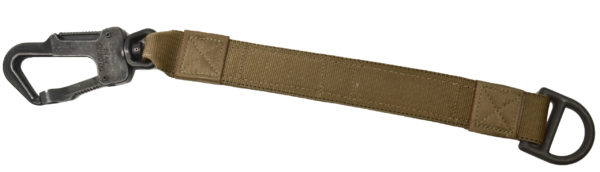

Description Survival Innovations designed and manufactures the Fixed Snap Hook Strap Assembly for use by mobile aircrew members. The strap is a pigtail design, 14-1/2 inches in webbing length, with a D-Ring on one end and a forged Safety Hook on the other. It passed a 5,000-pound ANSI Z359.1 load. A serialized Critical Safety Item, the Fixed Snap Hook Strap is currently being used with the Aircrew Endurance Vest. It has many other airborne applications. 513-TI Talon IIS Safety Hook Description: Titanium safety hook with integrated swivel eye. Features a locking gate to reduce ring roll-out or inadvertent release. To open, simply press the latch on the spine and open the gate. After release, the spring loaded gate and latch return to the locked positions. Ergonomic design allows for easy grip and functioning with a single hand. Improved ball & socket gate interface reduces snag incidents when clipping into or out of small diameter ropes & rings. *Meets ANSI Z359.12-2009 Major and Minor Axis Load Requirements. 513-TI Talon IIS Safety Hook Specs: Hook Body: 6AL-4V, Titanium Gate and Latch: 17-4PH, Stainless Stee Gate Spring: 17-7PH, Stainless Stee Swivel: 17-4PH, Stainless Steel Latch Spring: 303, Stainless Steel Weight: 0.60lbs (272 grams) Breaking Limit: 8,000lbs (3,628kg) Working Load Limit (WLL): 600lbs (272kg)
